MODEL |

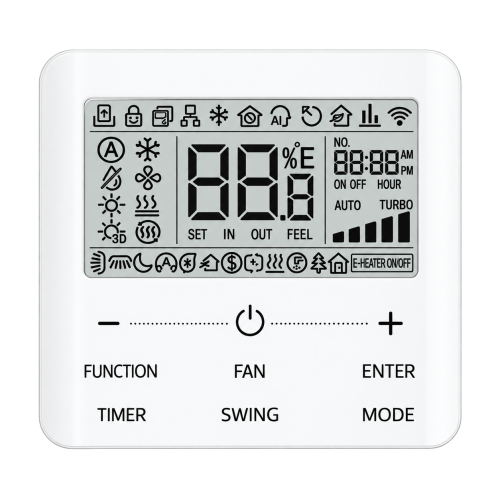

Remote controller manual |
Cooling capacity, kW |
Heating capacity, kW |
Net dimensions (control box) (W×H×D), mm |
Net dimensions (EXV box) (W×H×D), mm |
Weight, kg |
AXV-140VRDC1A |
(5187 KB) |
9,0 / 11,2 / 14,0 |
10,0 / 12,5 / 16,0 |
334×284×111 |
203×326×85 |
9 |
AXV-280VRDC1A |
(5187 KB) |
22,4 / 28,0 / 33,5 / 40,0 / 45,0 |
25,0 / 31,5 / 37,5 / 45,0 / 50,0 |
334×284×111 |
203×326×85 |
9 |
AXV-560VRDC1A |
(5187 KB) |
50,4 / 56,0 / 84,0 |
56,5 / 63,0 / 94,5 |
334×284×111 |
246×500×120 |
12 |
AXV-35VRDC1B (0-10V) |
- |
2,8 / 3,6 |
3,2 / 4,0 |
334×111×284 |
203×85×326 |
10,0 |
AXV-70VRDC1B (0-10V) |
- |
4,5 / 5,6 / 7,1 |
5,0 / 6,3 / 8,0 |
334×111×284 |
203×85×326 |
10,5 |
AXV-140VRDC1B (0-10V) |
- |
9,0 / 11,2 / 14,0 |
10,0 / 12,5 / 14,0 |
334×111×284 |
203×85×326 |
10,5 |
AXV-280VRDC1B (0-10V) |
- |
22,4 / 28,0 / 33,5 / 40,5 / 45,0 |
25,0 / 31,5 / 37,5 / 45,0 / 50,0 |
334×111×284 |
203×85×326 |
10,5 |
AXV-560VRDC1B (0-10V) |
- |
50,4 / 56,0 / 84,0 |
56,5 / 63,0 / 94,5 |
334×111×284 |
246×120×500 |
13,0 |
